NW

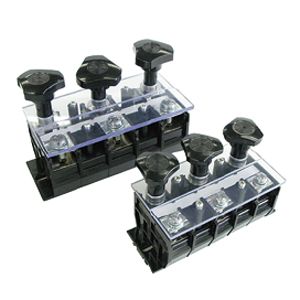

Knob terminal blocks Rated voltage: 600V~660V Rated current: 37A~200A

NW series knob terminal blocks with a newly developed structure release you from troublesome work at leading in power.

You can lead power safely and speedily to power boards for factories or construction work, including welders, pumps, testing, and inspection machines.

We use PC (Polycarbonate) with high resistance to electrical, heat and mechanical.

Screws and knobs prevented from falling off (Except for 20 type screw). Hand tightening type requiring no tool.
Model name Rated PDF CAD
NW-063AT AC,DC600V 60A CADDownload
NW-064AT AC,DC600V 60A
NW-103AT AC,DC600V 100A CADDownload
NW-104AT AC,DC600V 100A CADDownload
NW-203CT AC,DC660V 200A CADDownload
NW-204CT AC,DC660V 200A CADDownload
NW-204CTH AC,DC660V 200A CADDownload
