PCN7

Model name Specification PDF CAD Harness Cable
PCN7-1H34-TB34-K1 PCN7(Scew type For KEYENCE PLC ) CADDownload Harness Cable
Model name Type of the connector Manufacturers of connector Shape/form Shield Number of core Length of cable PDF CAD
KB34N-1H1H-0.5MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 0.5m
KB34N-1H1H-1MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 1m
KB34N-1H1H-1.5MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 1.5m
KB34N-1H1H-2MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 2m
KB34N-1H1H-3MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 3m
KB34N-1H1H-5MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 5m
KBS-1H34-0.5MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 0.5m
KBS-1H34-1MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 1m
KBS-1H34-1.5MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 1.5m
KBS-1H34-2MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 2m
KBS-1H34-3MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 3m
KBS-1H34-5MB MIL-MIL HIROSE ELECTRIC Straight Shielded 34 poles 5m
PCN7-1H40-TB40-K-CPU PCN7(Scew type For KEYENCE PLC ) PDFDownload CADDownload Harness Cable
Model name Type of the connector Manufacturers of connector Shape/form Shield Number of core Length of cable PDF CAD
KB40N-1H1H-0.5MB MIL-MIL HIROSE ELECTRIC Straight Unshielded 40 poles 0.5m
KB40N-1H1H-1MB MIL-MIL HIROSE ELECTRIC Straight Unshielded 40 poles 1m
KB40N-1H1H-1.5MB MIL-MIL HIROSE ELECTRIC Straight Unshielded 40 poles 1.5m
KB40N-1H1H-2MB MIL-MIL HIROSE ELECTRIC Straight Unshielded 40 poles 2m
KB40N-1H1H-3MB MIL-MIL HIROSE ELECTRIC Straight Unshielded 40 poles 3m
KB40N-1H1H-5MB MIL-MIL HIROSE ELECTRIC Straight Unshielded 40 poles 5m
KBS-1H40-0.5MB MIL-MIL HIROSE ELECTRIC Straight Shielded 40 poles 0.5m
KBS-1H40-1MB MIL-MIL HIROSE ELECTRIC Straight Shielded 40 poles 1m
KBS-1H40-1.5MB MIL-MIL HIROSE ELECTRIC Straight Shielded 40 poles 1.5m
KBS-1H40-2MB MIL-MIL HIROSE ELECTRIC Straight Shielded 40 poles 2m
KBS-1H40-3MB MIL-MIL HIROSE ELECTRIC Straight Shielded 40 poles 3m
KBS-1H40-5MB MIL-MIL HIROSE ELECTRIC Straight Shielded 40 poles 5m

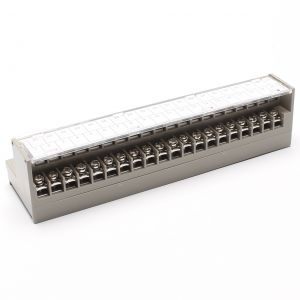

PCN7-4F40-TB40-K-CPU PCN7(Scew type For KEYENCE PLC ) PDFDownload CADDownload Harness Cable
Model name Type of the connector Manufacturers of connector Shape/form Shield Number of core Length of cable PDF CAD
KB40N-4F1H-0.5MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 0.5m
KB40N-4F1H-1MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 1m
KB40N-4F1H-1.5MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 1.5m
KB40N-4F1H-2MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 2m
KB40N-4F1H-3MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 3m
KB40N-4F1H-5MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 5m
KB40N-4F1H-8MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 8m
KB40N-4F1H-10MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 10m
KB40S-4F1H-0.5MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 0.5m
KB40S-4F1H-1MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 1m
KB40S-4F1H-1.5MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 1.5m
KB40S-4F1H-2MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 2m
KB40S-4F1H-3MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 3m
KB40S-4F1H-5MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 5m
KB40S-4F1H-7MB FCN-MIL TE-HIROSE Straight Shielded 40 poles 7m
